Racks made of plastic - POM

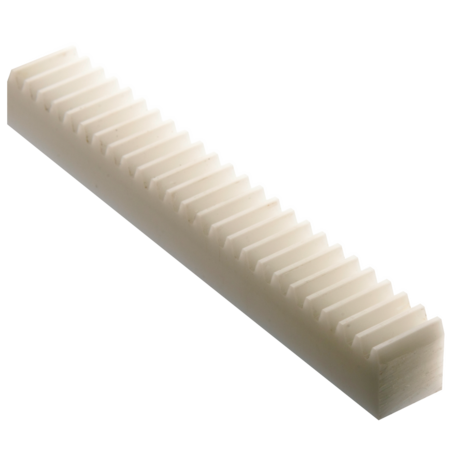

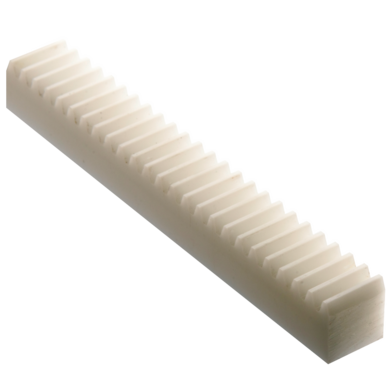

Rack plastic - product image

Plastic racks - modules 1–4 available from stock in lengths from 250 to 1,000 mm. The spur gear racks are made from POM semi-finished products. Due to its good mechanical properties, such as hardness, dimensional stability and sliding and wear behaviour, polyacetal (POM) is one of the preferred construction materials for precision parts, especially in mechanical and plant engineering, the automotive industry and electrical engineering. POM is a high-molecular thermoplastic. The abbreviation POM stands for polyoxymethylene / polyacetal / polyformaldehyde. Trade and brand names include Delrin, Hostaform and Ultraform.

Read more
PDF product catalogue
Rack made of plastic - technical drawing
Download CAD files

The CAD data, illustrations and technical drawings offered here by G&G Antriebstechnik GmbH have been created and checked with the greatest possible care. However, no guarantee is given for their completeness, up-to-dateness and usefulness. No liability and/or warranty claims can be derived from the use of the data and illustrations in question.

Some of the illustrations may be based on simplifications, especially if they are not supported by exact dimensions - this must be taken into account for designs or calculations.

We reserve the right to make changes due to the continuous development of our product portfolio and individual products.

Plastic racks - POM
This may also interest you

Product groups

Spur gear straight-toothed, PA6 with pre-drilled hole

Plastic

Rigid coupling slotted made of steel or stainless steel

Rigid coupling

Shaft collar made of steel (C45) burnished

Shaft collars

Read more

Plastic racks

Plastic racks from G&G are square in cross-section with spur gearing. POM semi-finished products are the starting material for cutting production. The toothing is milled in a quality of 10h27. Due to the material, they are not levelled. Without special surface treatment, G&G racks are only bondable to a limited extent.

You can find an overview of all G&G rack variants here.
