Trapezoidal threaded nuts - bronze, round

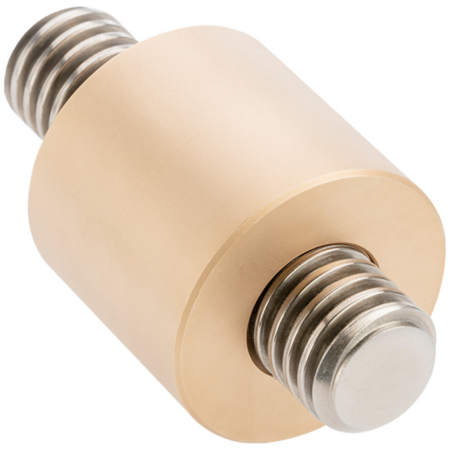

Trapezoidal threaded nut made of bronze - round

We supply trapezoidal threaded nuts made of bronze (CuSn7ZnPb) in ROUND design, single-start or double-start, as standard for all G&G trapezoidal threaded spindles according to DIN 103 tolerance 7H and on request also as custom-made products.

For trapezoidal screw drives in continuous operation, the combination of steel spindle and gunmetal nut is recommended due to the favourable wear properties. Trapezoidal threaded nuts made of gunmetal have good emergency running characteristics, especially in the event of inadequate lubricant.

PDF product catalogue
Trapezoidal threaded nut bronze - round - technical drawing
Download CAD files

The CAD data, illustrations and technical drawings offered here by G&G Antriebstechnik GmbH have been created and checked with the greatest possible care. However, no guarantee is given for their completeness, up-to-dateness and usefulness. No liability and/or warranty claims can be derived from the use of the data and illustrations in question.

Some of the illustrations may be based on simplifications, especially if they are not supported by exact dimensions - this must be taken into account for designs or calculations.

We reserve the right to make changes due to the continuous development of our product portfolio and individual products.

Trapezoidal threaded nuts - bronze - round
