Timing belt pulleys and toothed shafts for your drive solution

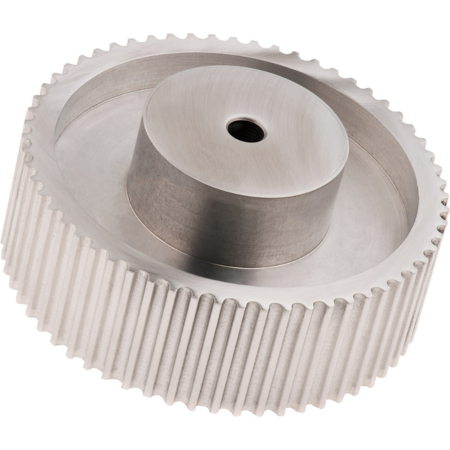

Timing belt pulley made of steel

G&G timing belt pulleys and shafts transmit the torque positively via an external profile that engages precisely with the corresponding timing belt. This enables the transmission of comparatively high torques and a high degree of efficiency without slippage – even at high speeds. Timing belt pulleys of different sizes allow the realisation of reduction ratios of up to 1:8. G&G offers a broad range that includes all standard profiles, designs and numbers of teeth. G&G timing belt pulleys and toothed shafts are produced in accordance with DIN ISO 5296.

Read more
PDF product catalogue
Download CAD files

The CAD data, illustrations and technical drawings offered here by G&G Antriebstechnik GmbH have been created and checked with the greatest possible care. However, no guarantee is given for their completeness, up-to-dateness and usefulness. No liability and/or warranty claims can be derived from the use of the data and illustrations in question.

Some of the illustrations may be based on simplifications, especially if they are not supported by exact dimensions - this must be taken into account for designs or calculations.

We reserve the right to make changes due to the continuous development of our product portfolio and individual products.

Timing belt pulleys T5
Timing belt pulleys T10
Timing belt pulleys AT5
Timing belt pulleys AT10
Timing belt pulleys HTD 5M
Timing belt pulleys HTD 8M
Timing belt pulleys HTD 14M
Toothed shafts
Overview

Timing belt pulleys

Timing belt pulleys T & AT - product photo

T5, T10, AT5, AT10

Timing belt pulleys HTD 5M, HTD 8M, HTD 14M - product photo

HTD 5M, HTD 8M, HTD 14M

Toothed shaft - product photo

Toothed shafts

  • Toothed shafts - T5
  • Toothed shafts - T10
  • Toothed shafts - A5
  • Toothed shafts - A10
  • Toothed shafts - 5M
  • Toothed shafts - 8M
Custom-made timing belt pulley

Do you need a custom-made timing belt pulley or toothed shaft?

Timing belt pulleys or toothed shafts either as custom-made products based on drawings or as standard parts pre-machined for immediate installation, including heat and/or surface treatment on request.

Inquire now
Read more

Further information

Application of timing belt pulleys

The field of application for timing belt pulleys is extremely broad and ranges from automation technology to assembly and handling technology to food technology. Linear technology relies heavily on synchronous, slip-free and above all precise power transmission, e.g. for positioning tasks.

In many applications in general mechanical and plant engineering, the high efficiency of timing belt drives plays an important role even at high rotational and peripheral speeds. Drive solutions with timing belt pulleys offer advantages for use in the food industry, as they do not require lubrication and are resistant to moisture and cleaning agents. Stainless steel pulleys are the preferred choice here.

Our range

G&G timing belt pulleys and toothed shafts are available in almost all standard profiles and designs for use both as original components and as spare parts – with pre-drilled holes or completely pre-machined for immediate installation. Users can choose between aluminium, steel, grey cast iron and stainless steel. On request, we can supply timing belt pulleys pre-machined for immediate installation or as complete custom-made products based on drawings.

G&G timing belt pulleys comply with the requirements of DIN ISO 5296.

The accessories “round off” the timing belt drive

With the extensive range of accessories from the G&G product range, timing belt pulleys can be configured to create perfect drive solutions. Clamping plates fix the ends of the open-end timing belt. On the drive or output side, toothed shafts are a suitable alternative to timing belt pulleys. G&G clamping bushes and locking assemblies can be used to create permanently friction-locked, easy-to-install shaft-hub connections for timing belt pulleys.
