Sprockets - duplex

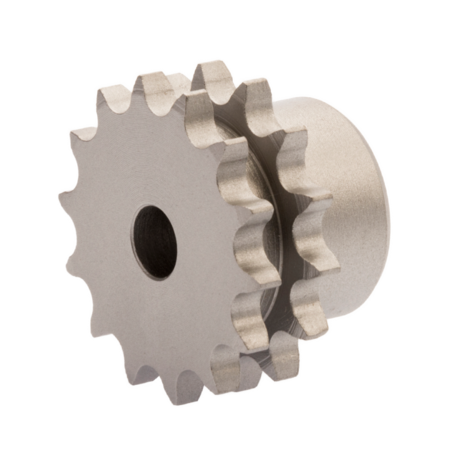

Sprocket duplex

The G&G range of stock items includes duplex sprockets according to DIN ISO 606 with one-sided hub, pre-drilled, made of steel C45 and matching duplex roller chains including connecting links.

On request, G&G can supply standard sprockets in duplex design pre-machined for immediate installation, also with heat and surface treatment on request. We also offer complete custom-made products based on drawings or samples.

PDF product catalogue
Sprocket duplex - technical drawing
Download CAD files

The CAD data, illustrations and technical drawings offered here by G&G Antriebstechnik GmbH have been created and checked with the greatest possible care. However, no guarantee is given for their completeness, up-to-dateness and usefulness. No liability and/or warranty claims can be derived from the use of the data and illustrations in question.

Some of the illustrations may be based on simplifications, especially if they are not supported by exact dimensions - this must be taken into account for designs or calculations.

We reserve the right to make changes due to the continuous development of our product portfolio and individual products.

Sprockets duplex

• Here you find an overview of our sprockets
