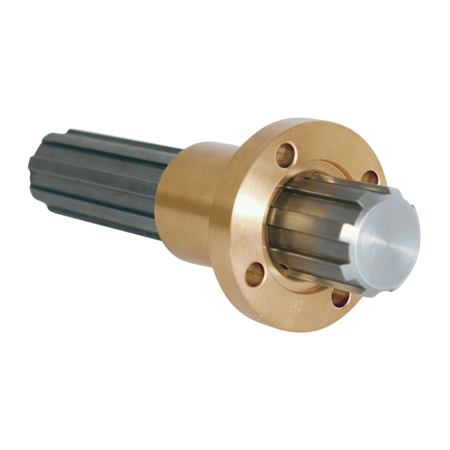

Splined shaft sleeve with flange

Splined shafts and splined shaft sleeves with flange are essential design elements for shaft-hub connections in mechanical and plant engineering. Torque is transmitted positively via the comparatively large contact surfaces on the splined sides. This allows large forces to be transmitted reliably and with low wear with no risk of slippage. If you are looking for special designs for splined shafts and/or splined shaft sleeves with flanges to suit a specific application, please contact us by email or just give us a call.

PDF product catalogue
Splined shaft sleeve with flange - technical drawing
Download CAD files

The CAD data, illustrations and technical drawings offered here by G&G Antriebstechnik GmbH have been created and checked with the greatest possible care. However, no guarantee is given for their completeness, up-to-dateness and usefulness. No liability and/or warranty claims can be derived from the use of the data and illustrations in question.

Some of the illustrations may be based on simplifications, especially if they are not supported by exact dimensions - this must be taken into account for designs or calculations.

We reserve the right to make changes due to the continuous development of our product portfolio and individual products.

Splined shaft sleeves with flange - C45
Splined shaft sleeves with flange - stainless steel / rustproof
Splined shaft sleeves with flange - bronze Rg7
