Splined shafts for your drive solution

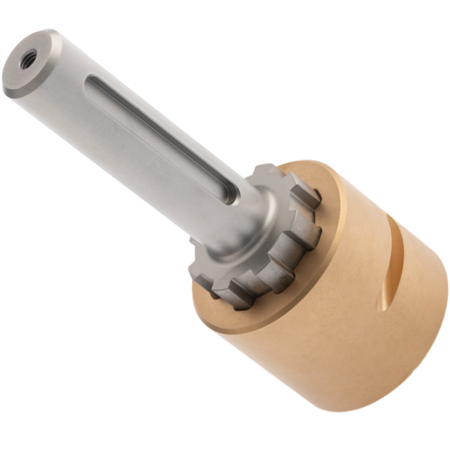

Splined shaft with splined shaft sleeve

Splined shaft drives consisting of splined shafts and splined hubs.

Splined shafts made of heat-treated steel C45, stainless steel VA 1.4305 and bronze RG7 according to DIN ISO 14. Matching splined hubs made of steel, stainless steel and gunmetal. Slotted shaft collars for splined shafts made of gunmetal.

Extensive range of stock items.

Splined shafts in special lengths and custom-made splined hubs on request.

Read more
PDF product catalogue
Splined shaft - technical drawing
Read more

Further information

Splined shafts transmit the rotary shaft movement directly and positively to the hub element with comparatively little wear. The splined profile creates the conditions for a precise fit of the shaft in the internally profiled sleeve and for the absorption of shock loads. Torque is transmitted via the contact surfaces on the splined sides. The comparatively large contact surfaces engaged allow the reliable transmission of high torques.

Fits

When referring to fits, the distinction is made between clearance fits, transition fits and interference fits. The key parameters for creating these fits are spline width, root diameter and outside diameter.

Materials for splined shafts

G&G splined shafts are manufactured either from heat-treated steel C45 or stainless steel VA 1.4301. On request, they are also available as custom-made products from 42CrMo4. We can supply you with large and medium quantities as well as individual items. Please contact us at contact(at)gg-antriebstechnik.de. Naturally, matching splined hubs and splined shaft sleeves are also available for each splined shaft series.

Standards for splined shafts

The standard ISO 14 describes dimensions, tolerances and verification for splined shaft connections with straight flanks and internal centring.

The requirements for splines with splined flanks are listed in DIN 5464. As C standards, i.e. industry-specific standards, DIN 5471 and 5472 specify the dimensions of splined shaft profiles and splined hub profiles with 4 or 6 splines and internal centring. SAE J499 and SAE J501 apply to splined profiles and shaft ends in accordance with American standards.

Production

Splined shaft profiles are manufactured by milling, grinding, cold drawing or shaping.

Product range

The G&G product and service range includes splined shafts with outer diameters of 14 to 54 mm and lengths of 1,000 to 3,000 mm – each with matching splined shaft sleeves with and without flanges as well as shaft collars in various materials.

Offers for shafts with customised end machining and splined shafts in special lengths > 3,000 mm can be made on request.

If you cannot immediately find what you require for your specific application, please send us an email or contact us directly by telephone.
